What We Do

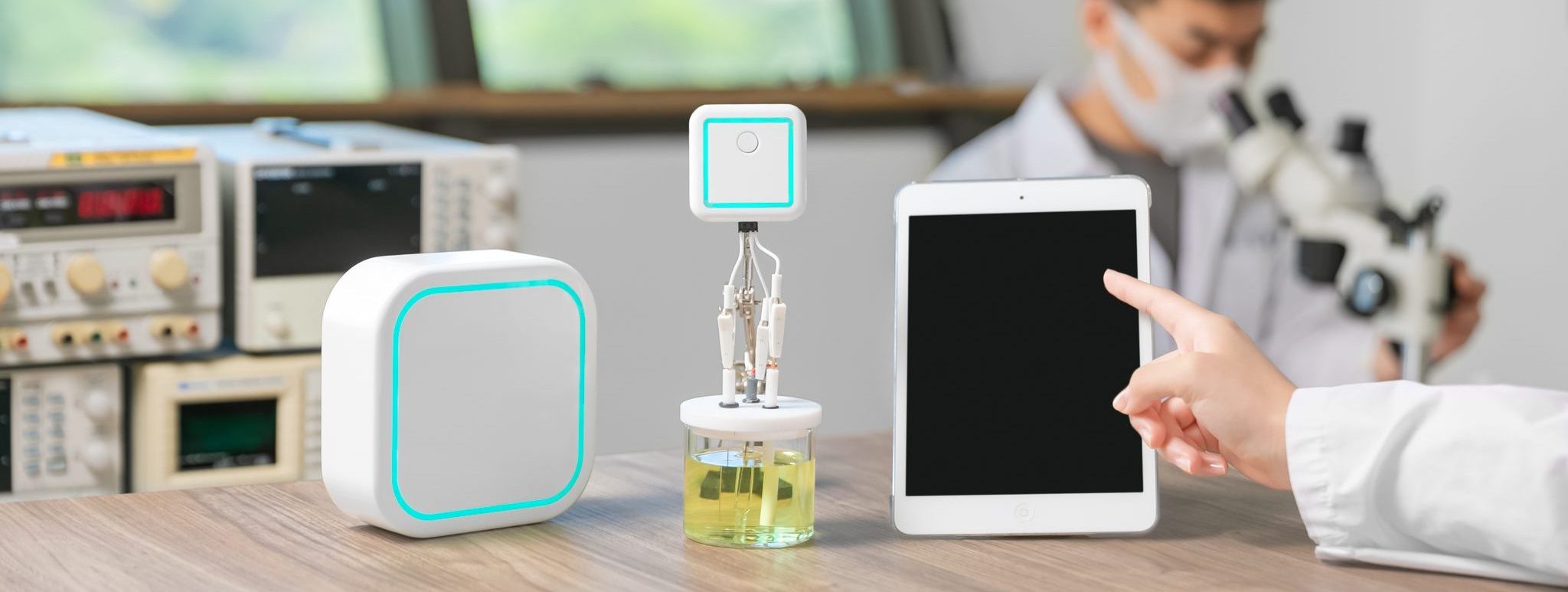

Carry Out Electrical Measurements Anytime, Anywhere with Elite Series
Elite are electrical measurement devices with miniature, versatility, intuitive operation, and wireless data transmission, which sends the data back to your laptops and tablets.
It is the perfect tool for engineers, researchers, and technicians who need to measure electrical properties in a variety of situations and applications.
Product Features
-
Miniaturization
-
Lightweight & Compact Devices
-
Streamlined I/O Interface
-
Your Portable Lab
-
-
Wireless
-

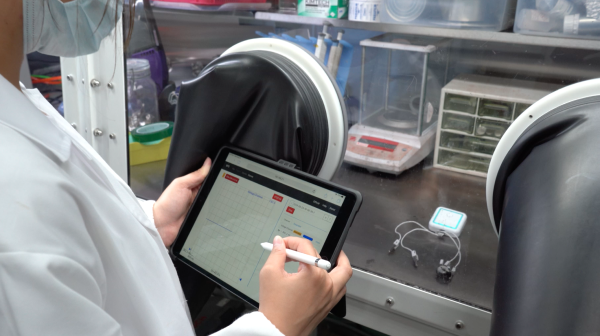

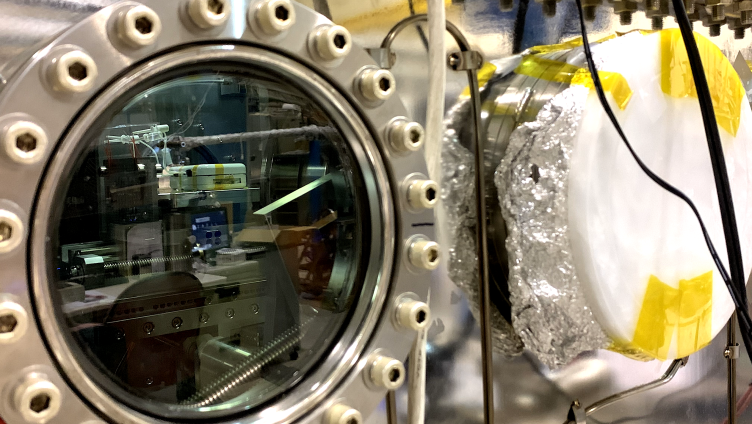

In-situ Operation
-
On-site Measurement
-
Next to Your Samples
-
-
IoT & Remote
-

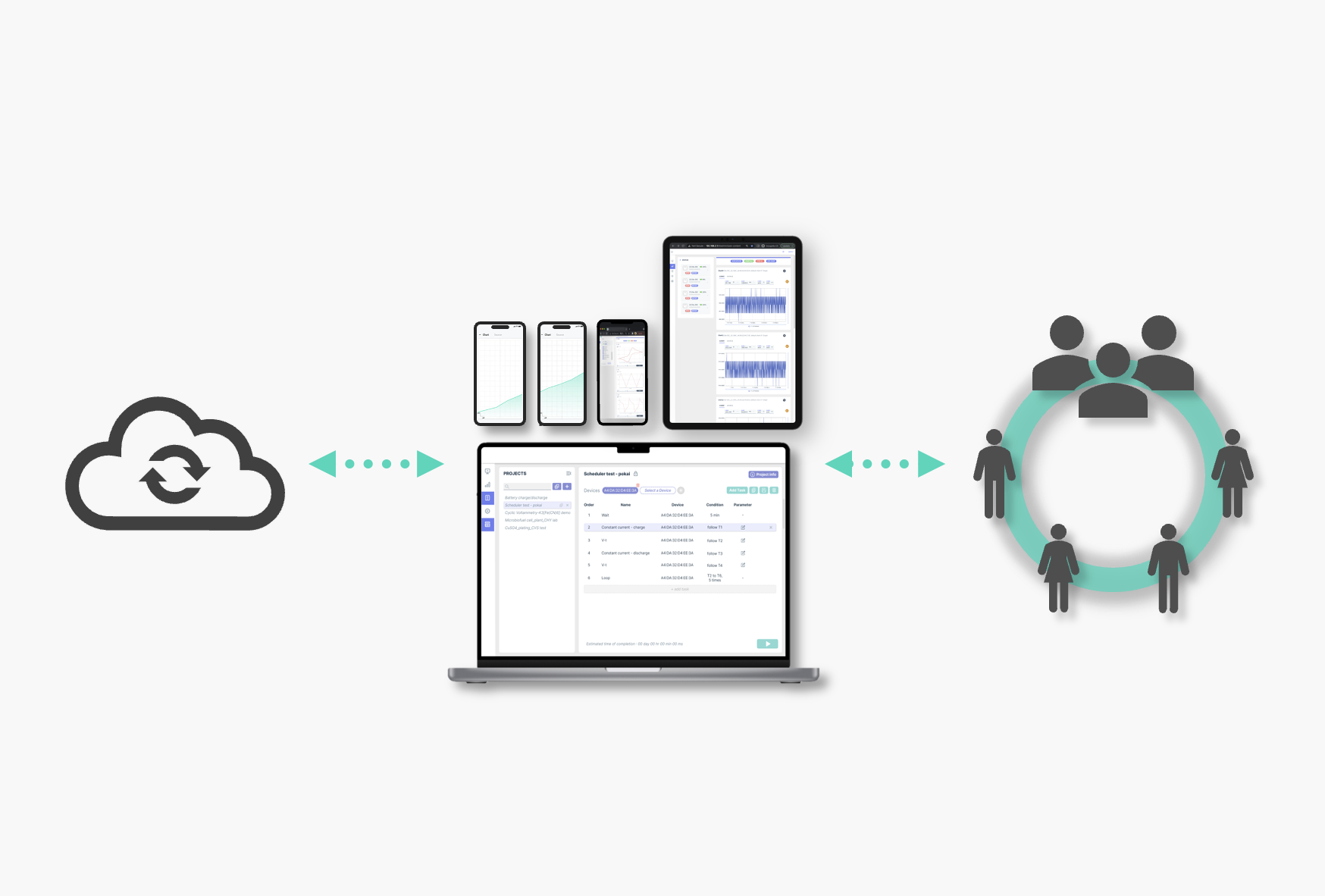

Simplify Collaborating
-
Efficient Data Collection & Management
-
Real-time Data Visualization
-
Our Products
View All Products
Relay Station for Elite Series
Controller
The controller lets you control your Elite and monitor measurement progress. You can also store, review, download your data, remotely control, and collaborate on your measurements on this platform.
-
128GB
storage
-
2.4GHz
Wi-Fi
-
13x13x5cm
portable size

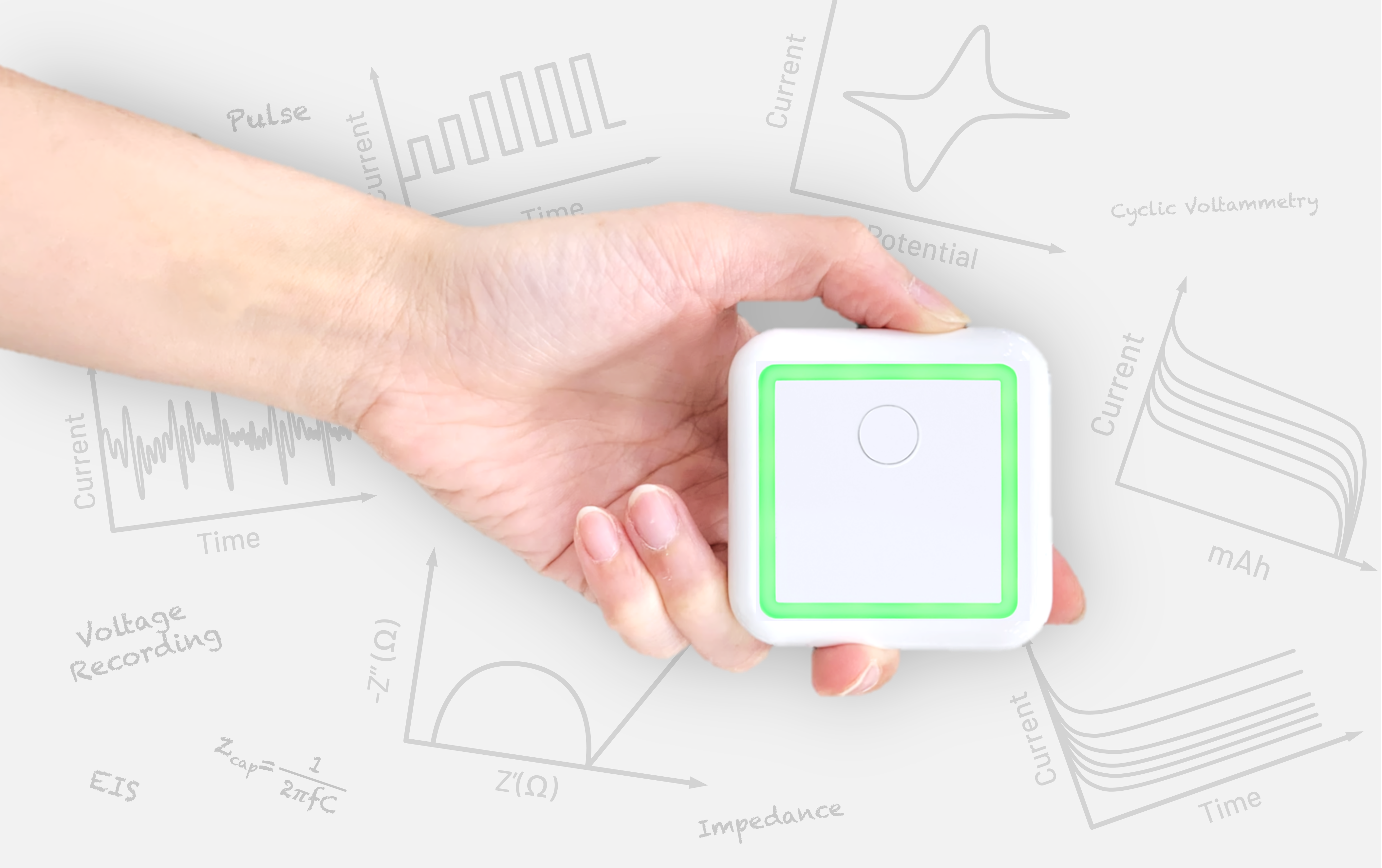

Wireless SMU, DMM & Logger
EDC

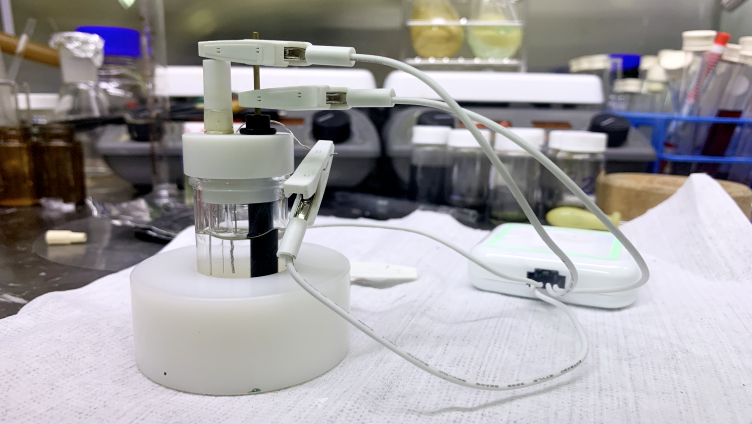

EDC with a general range of voltage output and current input is ideal for low-voltage electronic devices, sensors applications, electrochemistry, battery research, and more.
-
~20h
lithium
battery -
±5V
max.
voltage -
±15mA
max.
current -
6x6x2cm
miniaturized
Your Assistant for Multiple Devices Management
TRIG
TRIG capable of one trigger-input channel, two 5V switches, two isolated switches and four current regulators can help you coordinate your devices and system.
-
1ch
trigger
input -
2ch
5V-output
switch -
2ch
isolated
switch -
4ch
current
regulator
EIS/FRA
EIS/EIS-mini
EIS/EIS-mini apply a sinusoidal voltage input signal and measure the current output signal to calculate the impedance, phase or gain for the characterization of the sample/DUT/system.
-
200kHz
max.
frequency -
15mHz
min.
frequency -
±2V
max.
voltage -
±3mA
max.
current
Accessories
To improve your user experience during measurements and meet your unique needs, Elite offers a variety of accessories and customized services. For more information, please visit our accessories page.
-
Cables
& Leads -
Probe Positioning
& Probe Stages -
Battery
Holders -
Customization
& More
Software
intuitive learning, easy to use & convenient for collaboration
-
web-
basedno installation
required -
connected
no user devices
limitation -
remote
anytime
anywhere
Wide V/I Range of SMU, DMM & Logger
BAT
BAT is building on the accomplishments of EDC with enhancement capabilities on the output/input ranges of voltage and current, and supporting more methods for measurement.
-
±10V
max.
voltage -
±300mA
max.
current -
>3m
wireless
distance
Explore More Applications of Elite
View more application notes

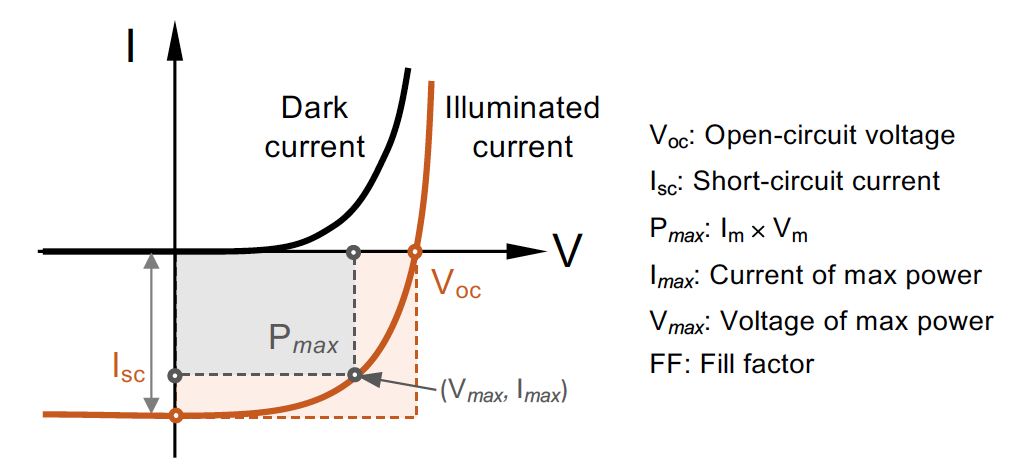

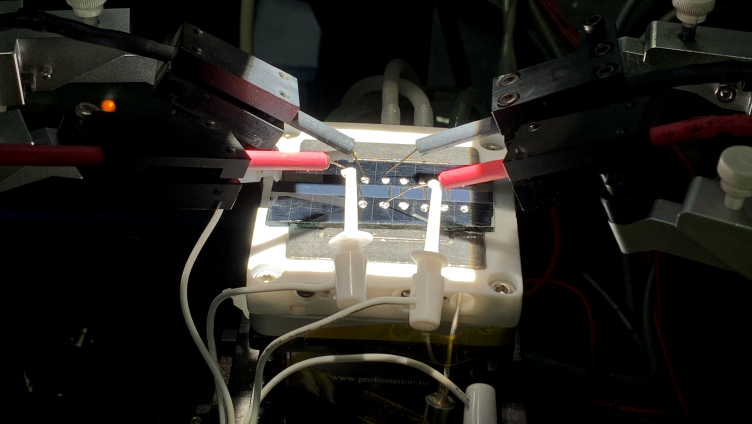

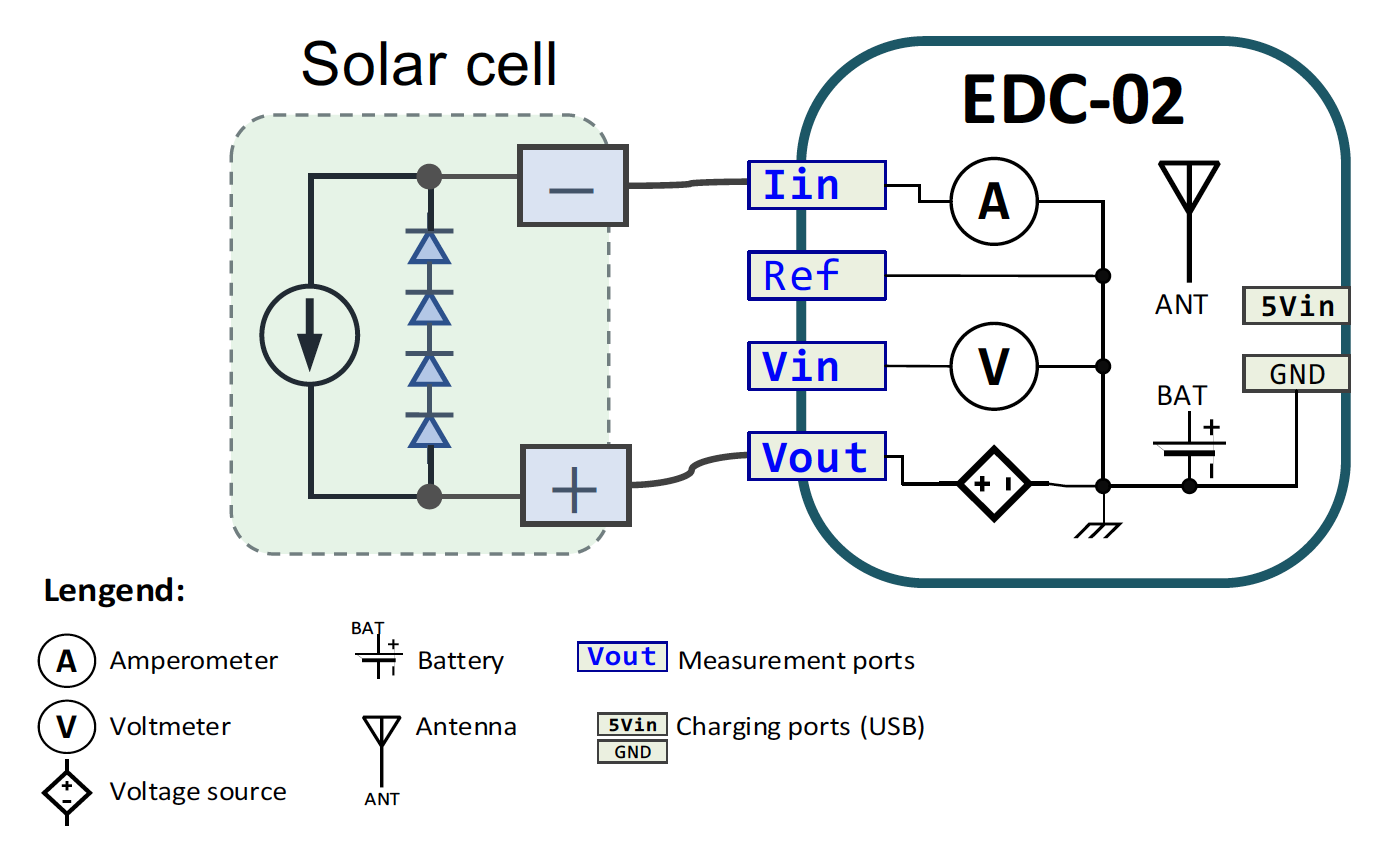

IV Characterization of Solar Cells using Elite-EDC

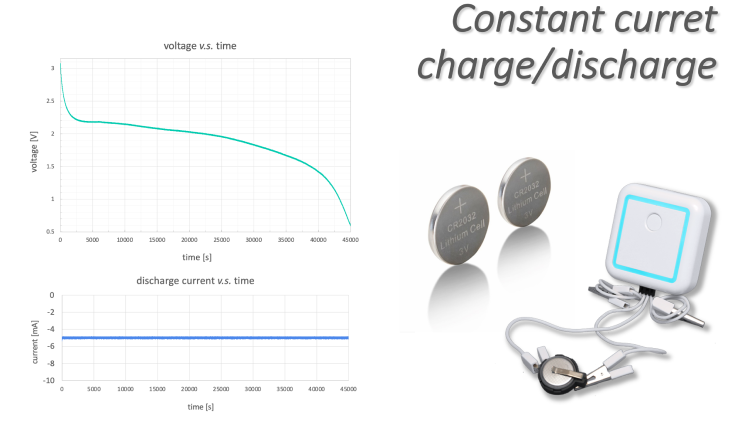

Galvanostatic charge-discharge of a Li-ion battery with Elite-EDC
Korem ipsum dolor sit amet, consectetur adipiscing elit.
IV Characterization of Solar Cells using Elite-EDC
Korem ipsum dolor sit amet, consectetur adipiscing elit.
IV Characterization of Solar Cells using Elite-EDC
Galvanostatic charge-discharge of a Li-ion battery with Elite-EDC
Applicable for all products
Check out our “Web Page-Based” interface
No more software installation and compatible with all tablets, laptops, and mobile phones.
Automatically launch when connected to Controller/Hub.Remote control enabled.
