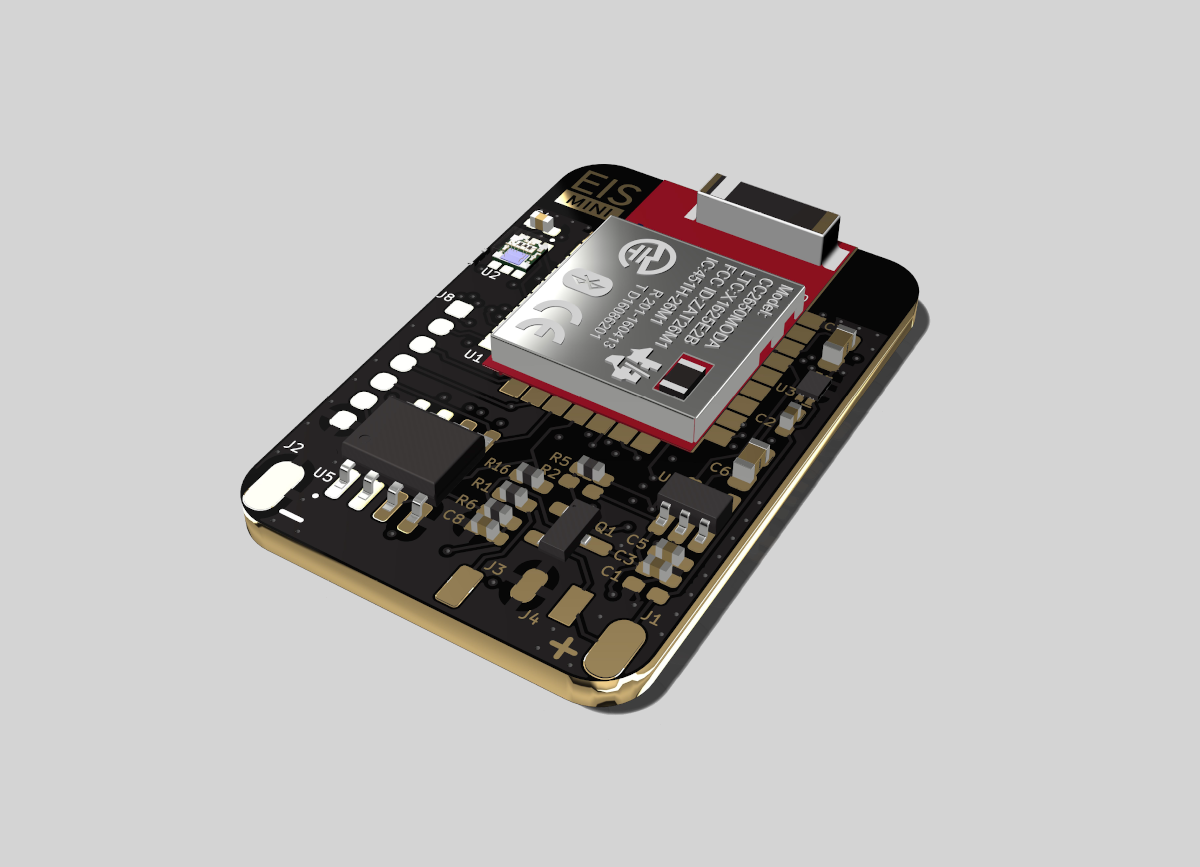

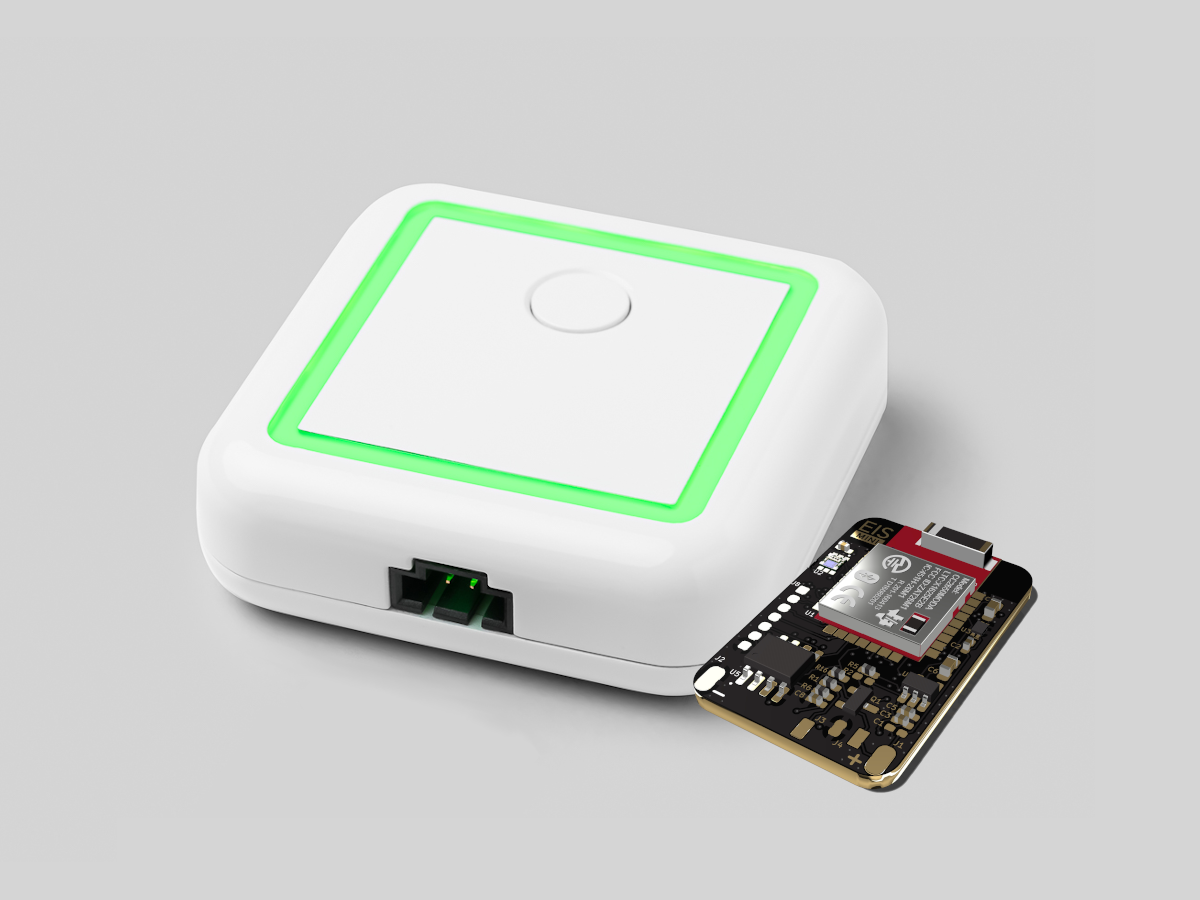

EIS/EIS-mini
DESCRIPTIONS
EIS is a DC source measurement unit with small size, .
EDC is an integrated DC source measurement unit, multimeter, and data logger with miniature, versatility, intuitive operation, and wireless data transmission. With a general range of voltage output and current input, EDC is ideal for low-voltage electronic devices, sensors applications, electrochemistry, battery research, and much more. You will need an Elite Controller to manipulate your EIS/EIS-mini, check measuring progresses, and review the data.
FEATURES
Easy-to-use
Plug-and-play with built-in function modes can shorten the learning curve and simplify measuring processes, so you can focus on analyzing your data or solving problems.
Low Voltage & Current Measurement
Input/output voltage range from 2V to 1 mV; input current range from 3 mA to nA.
Alternating Voltage Output
Experimental Monitoring
Real-time display your data on the screen and check your measurement anytime, anywhere with the remote accesses.
In-Situ & Portability
Wireless recording in closed chambers, glove boxes, incubators, or outdoor environments.
Standard package included : EIS or EIS-mini×1, 15cm alligator leads×1, USB power adaptor×1 & USB to microUSB cable×1
Product specification
EIS/FRA
EIS/EIS-mini
EIS/EIS-mini apply a sinusoidal voltage input signal and measure the current output signal to calculate the impedance, phase or gain for the characterization of the sample/DUT/system
-
200kHz
max.
frequency -
15mHz
min.
frequency -
±2V
max.
voltage -
±3mA
max.
current
-
Output Voltage
-1.8 ~ +2.0 V (resolution: 100 μV)
-
Input Voltage
-1.8 ~ +2.0 V (1 mV/ 100 μV)
-
Input Current
± 3 mA (with 8 current range, resolution: 1 nA/100 pA)
-
Frequency
15 mHz - 200 kHz
-
Amplitude
V-peak : 10 mV - 600 mV
-
Scan Rate
0.01 -100 mV/s
-
Sampling Rate
0.01 - 100 sample (sps)
-
Wireless Range
> 3 m
-
Dimension
ESI：60 x 60 x 20 mm & EIS-mini：30 x 10 x 8 mm
-
Weight
ESI：60 g (2.12 oz) & EIS-mini：< 5 g (0.18 oz)
-
Working Mode
Electrochemical impedance spectroscopy (EIS), constant frequency, cyclic voltammetry (CV) chronoamperometry (CA), chronopotentiometry (CP), V, I, R-t monitoring
